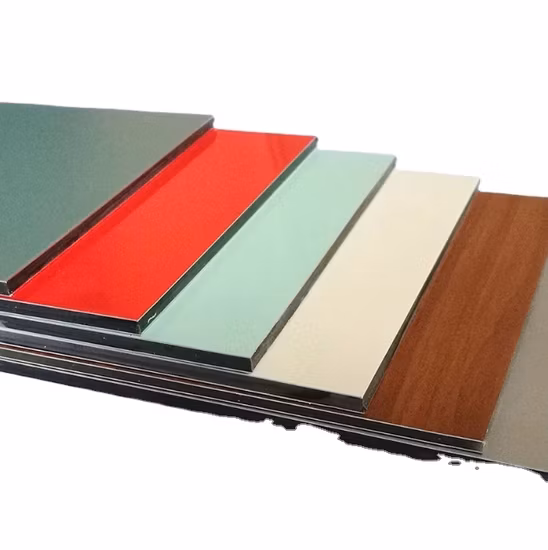

Aluminum Composite Panel Sandwich Panel for Cladding, Facade, Signage

Basic Info

Model NO.	Aluminum Composite Panel
Usage	External Wall, Curtain Wall, Interior, Advertising
Certification	CE, ISO
Product Name	Aluminum Composite Panel
Thickenss	3/4/5mm
Core Material	LDPE
Coating	PE/PVDF
Color	Solid/Glossy/Metallic/Wood//Mirror/Brushed/Pearly
Transport Package	Loose Packing, Wood Pallets or According to You
Specification	Customized
Trademark	HUAZHU
Origin	Shangdong, China
HS Code	7606125100
Production Capacity	10000ton/Month

Product Description

Specification
As a new type of decorative material, the aluminum composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle is a non-toxic low-density polyethylene (PE) core plate. The front is also pasted with a layer of protection. membrane. For outdoor, the front of the aluminum-plastic panel is coated with fluorocarbon resin (PVDF) coating, and for indoors, the front can be coated with non-fluorocarbon resin.

1. Quality:1) Under natural climate, film coating will be no flake. No rubbles, no vestige and no pulverization. 2) Under common environment. No flake. No rubbles. 3) Under common temperatures and radiation, no color difference. 4) According to international test standard, all the tested items are satisfied with high-class. 5) Our products with PVDF coating under common environment, we can guarantee 15-20 years; And for FR products, it is good at fireproof, and the FR grade is B1. 2. Dimensions: Width:1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm ,2000mmLength :2440mm, 3200mm,4000mm 5000mm 6000mm,or customized Thickness : 2mm, 3mm, 4mm, 5mm, 6mm,8mm,10mmThickness of ALU-layer : 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm Inner Core Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof materialColor : Solid color, metallic color, brush color, mirror, marble, wooden color, glossyBrand: KINGALUCO, MEGABOND, or customized Surface : PE coating , PVDF coating, NANO, Brush surface, mirror surface,marble.Thickness of film :0.07mm,0.09mmFCL :1220*2440*4mm 1200 sheets in 20 feet container;

Non-standard sizes and special colors are available, according to customers' requests

3.Features: 1) Fireproof and water resistant, excellent heat and sound insulation 2) Excellent surface flatness and smoothness 3) Superior weather, corrosion and pollutant resistance 4) Even coating, various colors 5)Super peeling strength 6) Superior impact resistance 7) Lightweight and easy to process 8) Easy to maintain

Standard size	1220*2440,1250*3200,1500*3050,1500*4050...
Accepted thickness	2mm,3mm,4mm,5mm,6mm
Common width	1220mm, 1250mm, 1500mm, 1575mm, 2000mm...
Accepted length	According to buyer's requirement
Accepted alu thickness	0.02~0.5mm, such as 0.06mm,0.10mm,0.15mm, 0.18mm,0.21mm,0.3mm,0.35mm,0.4mm, 0.45mm,0.5mm
other details	kindly contact me please, thanks

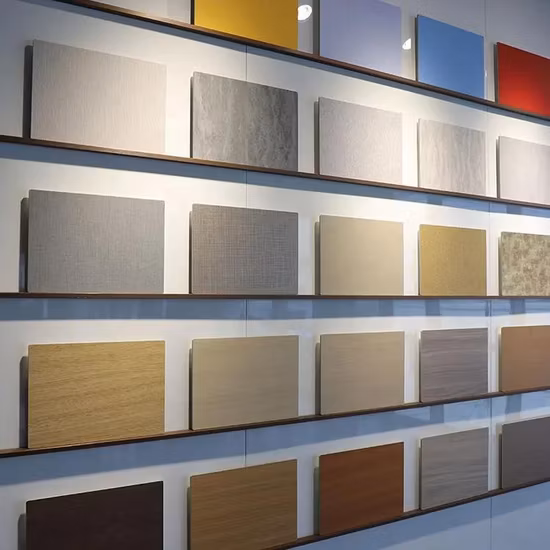

Color Card
Product Text



Appliacation



Factory

Located in Shandong province, Shandong Huazhua Manufacture is a large-sized steel and non-ferrous products manufacturer with its own machinery industry base in northern China. We specialize in various kinds of prefabricated/processed building materials and concerned services, with rich experience in various metal manufacturing, engineering and trading.

Our main products include corrosion resistant steel plates, galvanized steel plates, stainless steel plates, stainless steel pipes, galvanized steel coils, galvanized steel pipes, lead sheets, galvanized steel pipes, pre-painted galvanized steel coils, corrugated steel sheets, thick-walled seamless steel pipes, alloy seamless steel pipes, welded steel pipe, and copper pipes / sheets /bars / coils, brass pipes / sheets / bars / coils, aluminium plates / sheet / pipes/ coils /ingots. In addition to various kinds of metal materials, we also provide stamping, welding, CNC turning, bending wire cutting laser cutting service to our customers.

The production base of our own covers an area of around 16000 square meters, with over 50 employees. With an annual production capacity over 300000 Tons, we are capable of customizing metal products with specific specifications according to suit our fellow customers' needs. Boasting of high quality products, competitive prices, reasonable payment arrangement, thoughtful and efficient services, we have gained a significant and ever rising market share in the international arena, winning customers from across the globe.

Despite the existing attainment, we never cease to move forward, and have been on the way of providing solutions for our global customers with our long-term commitments by improving our product quality and services as ever.
Why Choose Us

Our Advantage:
1)24 hours online Provide consulting and quotation services for customers all the time.
2)We are an integrated steel enterprises of which business range covers production processing,storage,logistics and sales.3) Exported to more than 70 countriesserviced for more than 2000 customers.4)Supply steel products for more than 200 proects and 50 national program.5)Both small batch order quantity and customer customization accepted.
Packing& Delivery

1. Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet.2. 15-20 MT can be loaded into 20FT container and 21-24 MT is more suitable in 40FT container.3. The other packing can be mace based on the customer requirement.4. Normally, we have four layers of packing: wooden pallets, hardboard, Kraft paper and plastic.And fill more desiccants into package.
FAQ1.
Q: Do you provide free samples? A: Yes, we can provide a free sample for testing, buyer should bear all the shipping costs.2.
Q: Do you accept small orders? A: You don't need to worry about this problem, just consult.3. Q: Do you accept the third party inspection? A: Yes absolutely we accept.

4.
Q: Can we visit your factory? A: Once we have your schedulewe will warmly welcome you.

5.
Q: What are the advantages of your company? A: (1): Prime quality and reasonable price. (2): Wide excellent experiences with after-sale service. (3): Every process will be checked by responsible QC which insures every product's quality. (4): Professional packing teams which keep every packing safely. (5): Trial order can be done in one week. (6): Samples can be provided as your requirements.6.
Q: What is your terms of payment ? A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance ,balance based on BL copy or LC at sight.7.
Q: How about our price? A: Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.8.
Q: How long is your delivery time? A: Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 7 days after we received your deposit.*Note: If you have any question, please feel free to click "Contact Supplier" as below,we will get back to you immediately.
